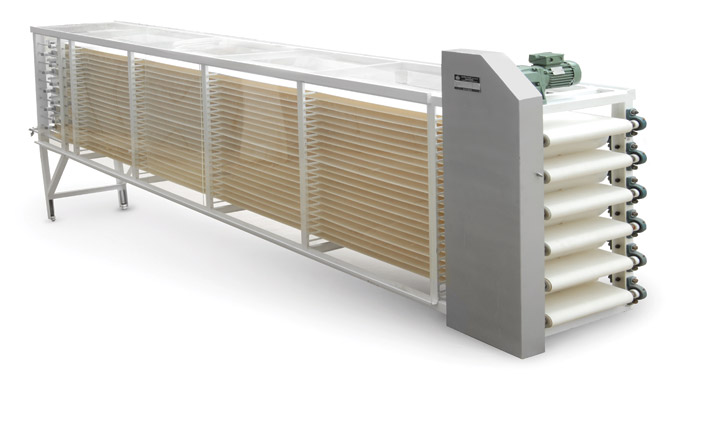

Final Proofer




The machine conveys the dough sheets from the Sheeter into
the Tunnel Oven after leavening it ...

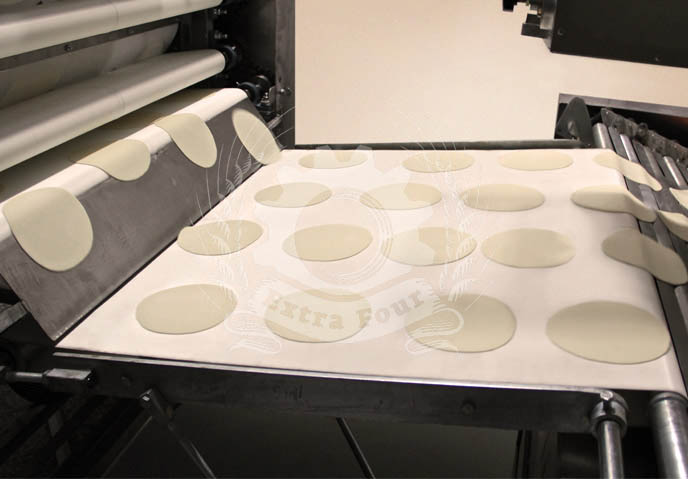

The Final Proofer conveys automatically the dough sheets from the Sheeter into
the Tunnel Oven after leavening it on different layers for a time that can be amended using the engine, either mechanically or electronically.

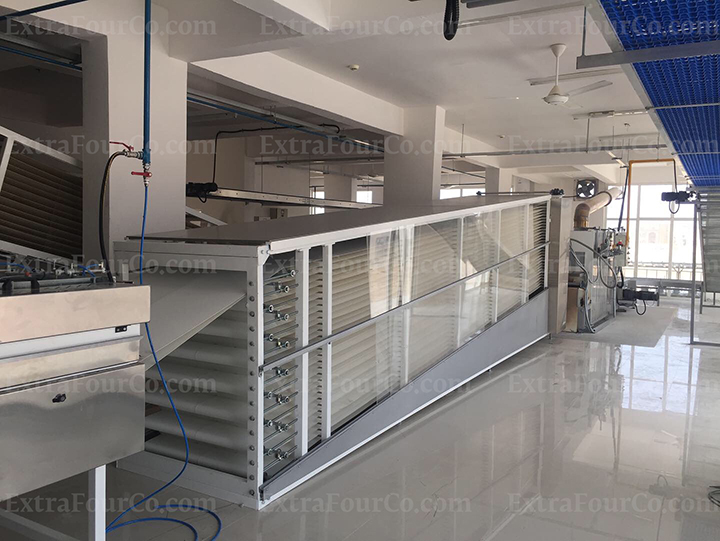

  • The sides of the Proofer have been equipped with transparent plastic window panels in order to isolate the leavening process from the outside environment while allowing you to monitor the leavening process without opening the plastic windows.

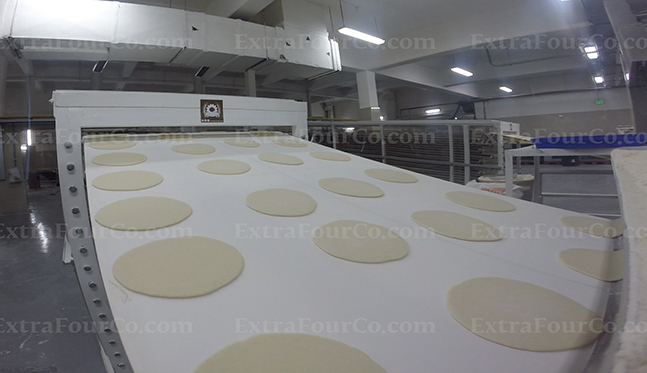

  • Food grade quality felt belts are responsible for the transportation of the dough.

SPECIFICATIONS



Belt Width

(mm)

Power

(kW)

Power

Supply

Proofing

time

(s)

Number of

Levels

Dimensions

L W H (mm)

Single Row Compact 400 1.5

Three-phase

+ N

4-8 11 3700x750x1800
Single Row 500 1.5

Three-phase

+ N

8-15 15 6200x850x2120
Double Rows 800 2.2

Three-phase

+ N

8-15 15 7200x1150x2120
Triple Rows 800 - 1000 2.2

Three-phase

+ N

8-15 15

7200x1150x2120

7200x1350x2120

Four Rows 1000 2.2

Three-phase

+ N

8-15 15 7200x1350x2120
